100GbE / 25GbE Network Switch
Introducing Yamaha ProAV-ready network switches "SWX2322P-30MC" and "SWX3220-30TCs" supporting 100GbE and 25GbE connectivity.
As the transition to IP-based audio and video accelerates, AV systems demand faster and more flexible network infrastructure. Yamaha switches are purpose-built for ProAV environments, combining intuitive operability with exceptional reliability.
They are especially well-suited for high-resolution, low-latency transmission in live entertainment venues and large-scale corporate facilities.
Product Information

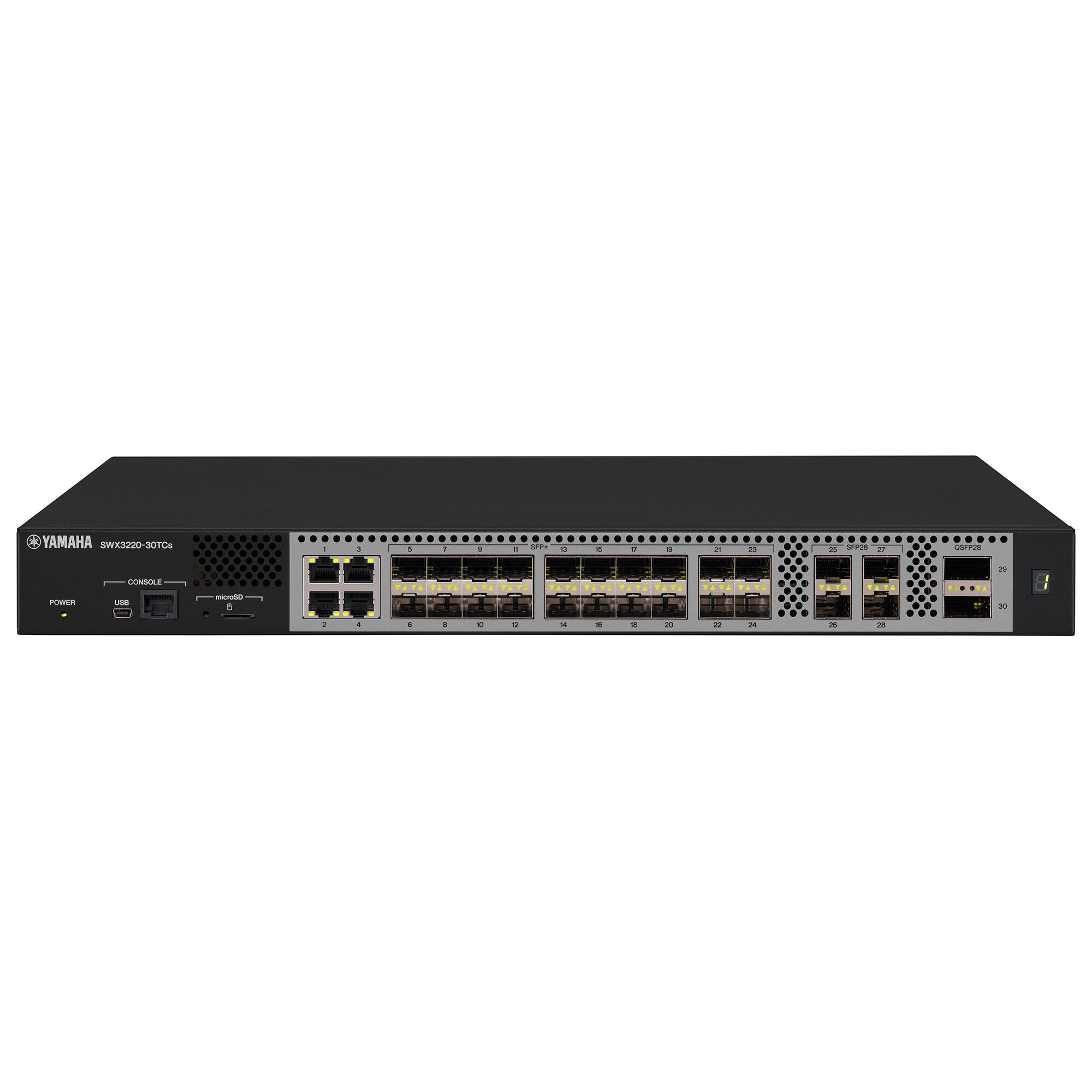

SWX3220-30TCs L3 Switch
L3 Standard switch with 30 ports
- 2 QSFP28 slots, 4 SFP28 slots, 20 SFP+ slots and 4 multi-gigabit ports (100M / 1G / 2.5G / 5G / 10G)
- Redundant power supply unit slots (Hot-swappable)
- Supports PTPv2 BC (Boundary Clock) / TC (Transparent Clock)
- Built-in RADIUS server for advanced security management
- Supports Yamaha LAN Monitor

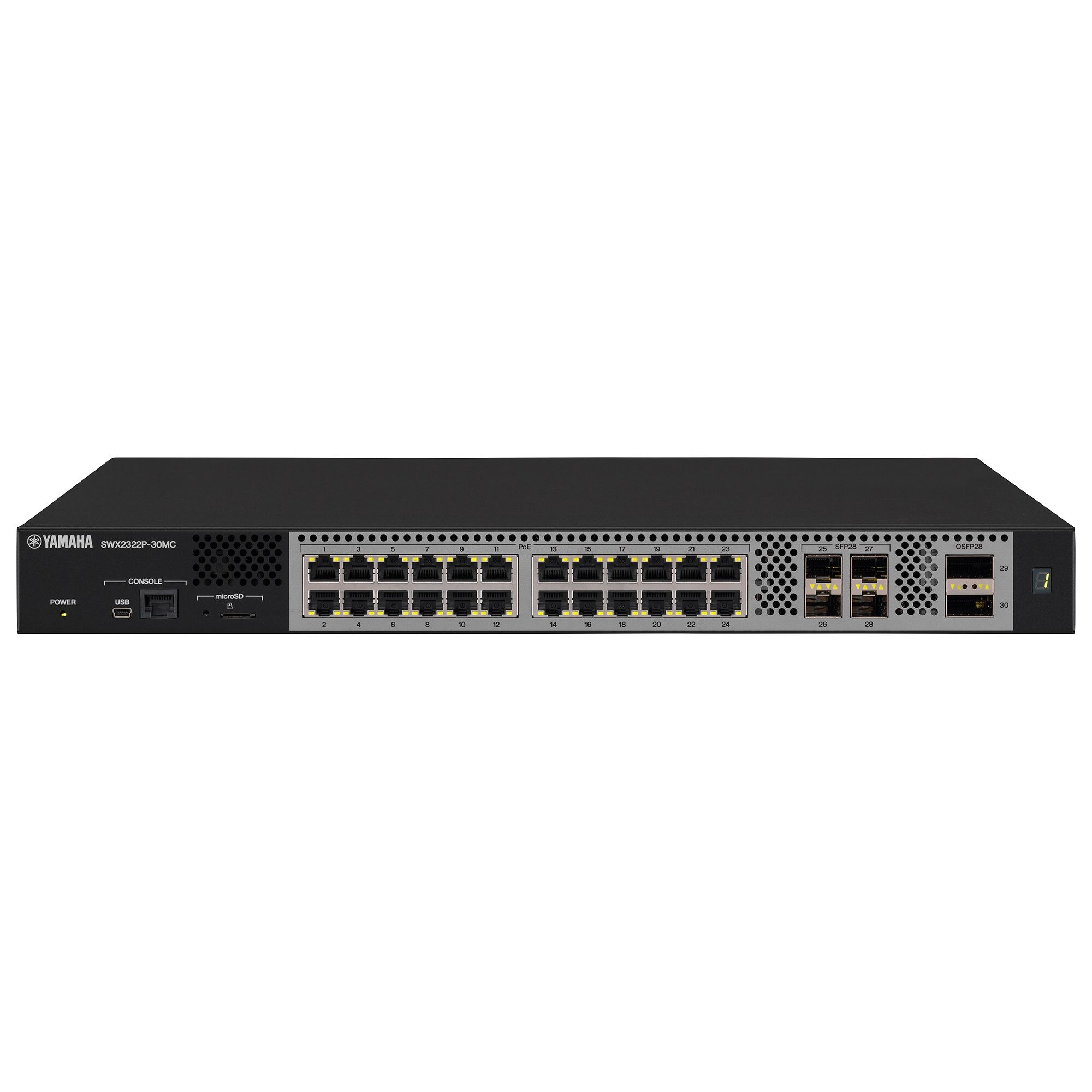

SWX2322P-30MC L2 Switch
L2 Intelligent PoE++ switch with 30 ports
- 2 QSFP28 slots, 4 SFP28 slots and 24 multi-gigabit PoE ports (100M / 1G / 2.5G / 5G / 10G)
- IEEE 802.3bt compliant with PoE++ supplying up to 90 W per port (Total: 720 W)
- Supports PTPv2 TC (Transparent Clock)
- Built-in RADIUS server for advanced security management
- Supports Yamaha LAN Monitor
Options
YPSU-550W-AC Power Supply Unit
Redundant power supply unit
- Power supply unit for system redundant (Hot swappable)
- Available for SWX3220-30TCs
YSFP-25G-SR SFP28 Module
SFP28 module for 25 Gbps network. Multi-mode.
- Maximum Transmission Distance: 70 m (50 μm, OM3) , 100 m (50 μm, OM4)
- Compatible Cables: Multi-mode optical fiber (50/125 μm, 62.5/125 μm)
- Regulatory standards: IEEE 802.3 by
- Connector: 2-prong LC connector
- Optical Wavelength: 850 nm
- Available for SWX3220-30TCs / SWX2322P-30MC
YSFP-25G-LR SFP28 Module
SFP28 module for 25 Gbps network. Single-mode.
- Maximum Transmission Distance: 10 km (Performance depends on optical fiber and fitting)
- Compatible Cables: Single-mode optical fiber (9/125 μm)
- Regulatory standards: IEEE 802.3cc
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310 nm
- Available for SWX3220-30TCs / SWX2322P-30MC
SFP-SWRT-LR SFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: 10 km (Performance depends on optical fiber and fitting)
- Compatible Cables: Single-mode optical fiber (9/125 μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-LR
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310 nm
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
SFP-SWRT-SR SFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: OM1 (62.5/125 μm): 33 m, OM2 (50/125 μm): 82 m, OM3 (50/125 μm): 300 m, OM4 (50/125 μm): 400 m
- Compatible Cables: Multi-mode optical fiber (50/125 μm, 62.5/125 μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-SR
- Connector: 2-prong LC connector
- Optical Wavelength: 850 nm
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
SFP-SWRG-LX SFP Module
SFP module for SWX/SWR series switches
- Maximum Transmission Distance: 10 km (Performance depends on optical fiber and fitting)
- Compatible Cables: Single-mode optical fiber (9/125 μm)
- Regulatory standards: IEEE802.3z, 1000BASE-LX
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
SFP-SWRG-SX SFP Module
SFP module for SWX/SWR series switches
- Maximum Transmission Distance: 550 m (50/125 μm) / 300 m (62.5/125 μm) Performance depends on optical fiber and fitting
- Compatible Cables: Multi-mode optical fiber (50/125 μm, 62.5/125 μm)
- Regulatory standards: IEEE802.3z, 1000BASE-SX
- Connector: 2-prong LC connector
- Optical Wavelength: 850 nm
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G

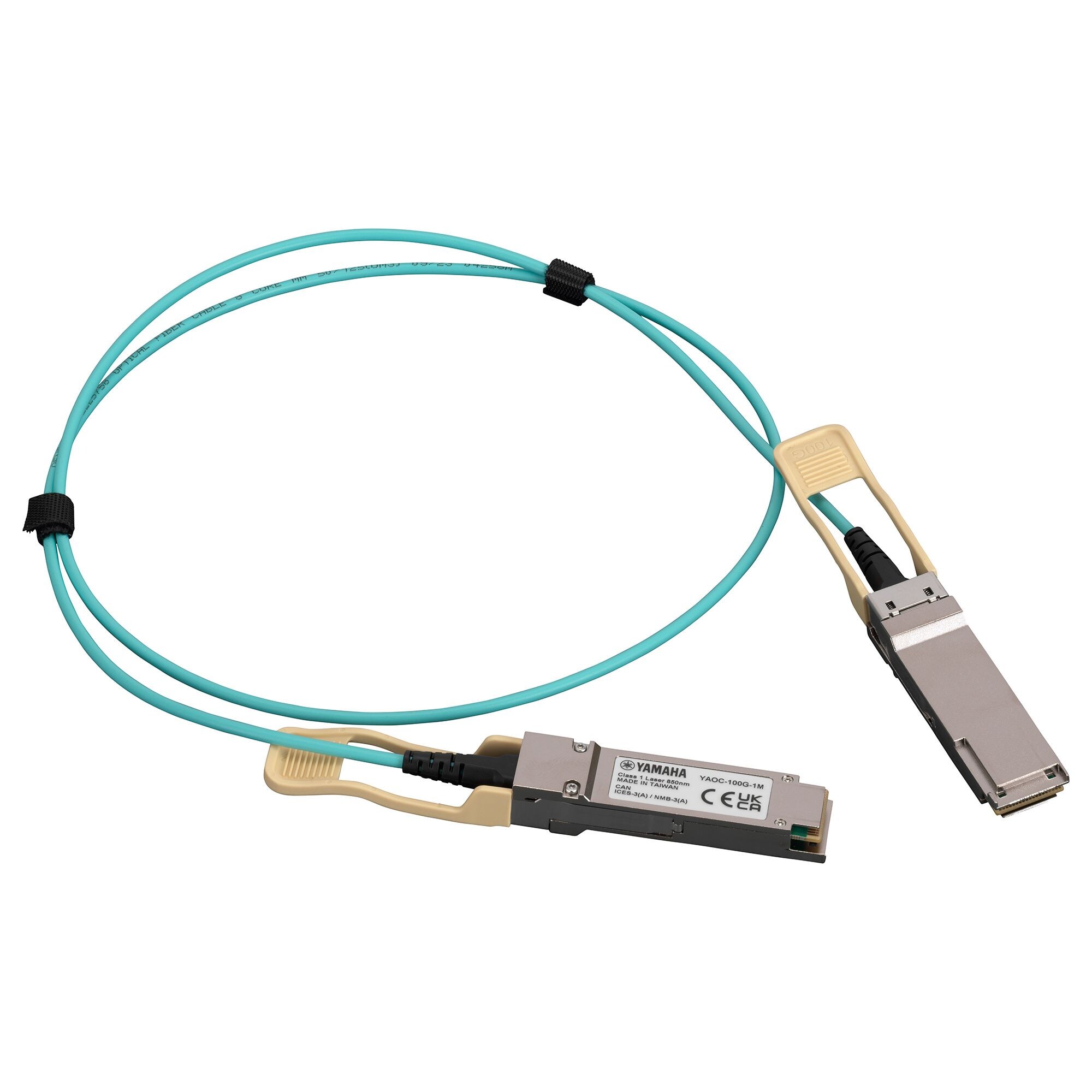

YAOC-100G-1M Active Optical Cable
AOC (Active Optical Cable) for 100 GbE network
- Cable length: 1 m
- Available for SWX3220-30TCs / SWX2322P-30MC

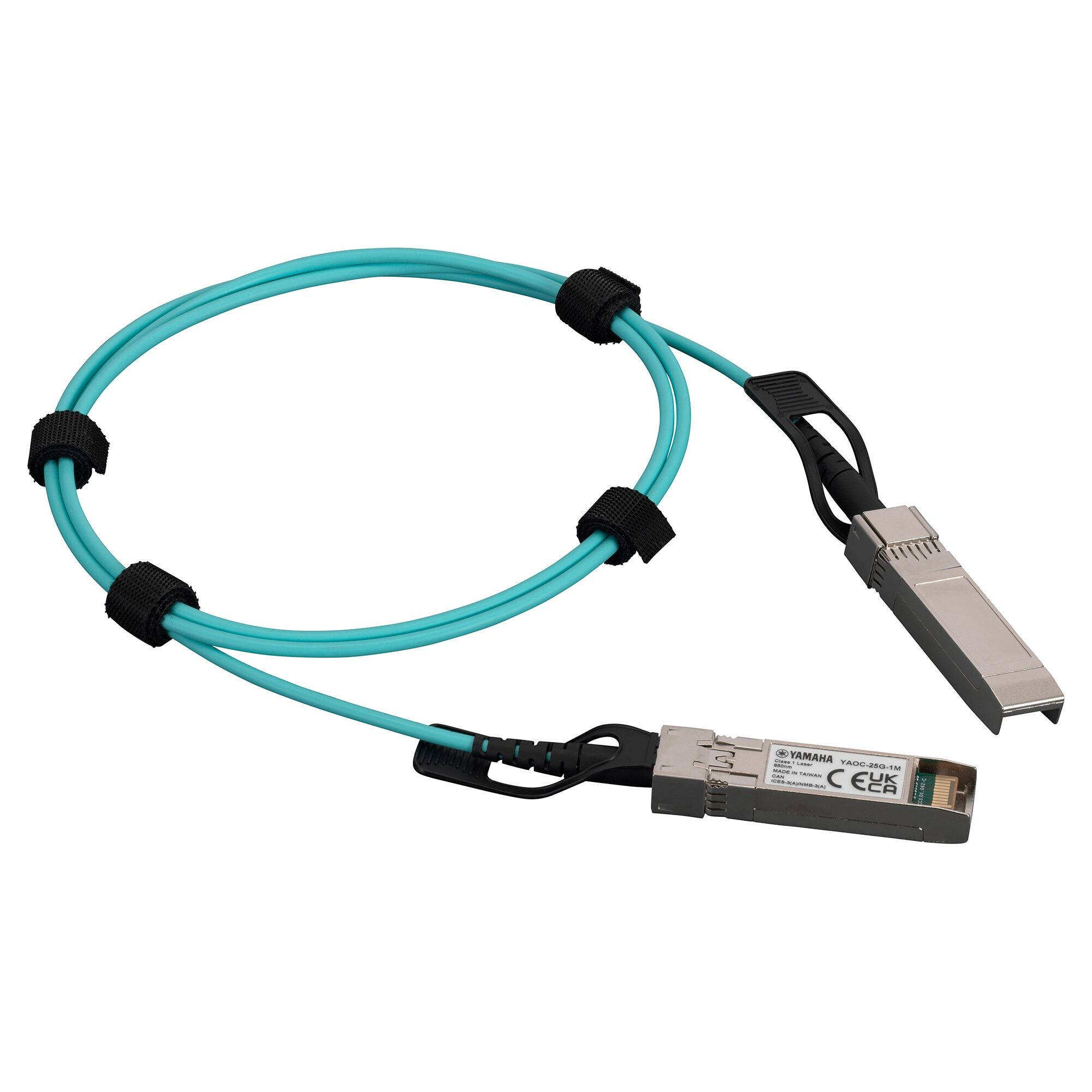

YAOC-25G-1M Active Optical Cable
AOC (Active Optical Cable) for 25 GbE network
- Cable length: 1 m
- Available for SWX3220-30TCs / SWX2322P-30MC
DAC-SWRT-3M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 3 m
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
DAC-SWRT-1M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 1 m
- Available for SWX3220-30TCs / SWX2322P-30MC / SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
