SWX3220 / SWX2320 (Uplink 100G/25G)
System examples:

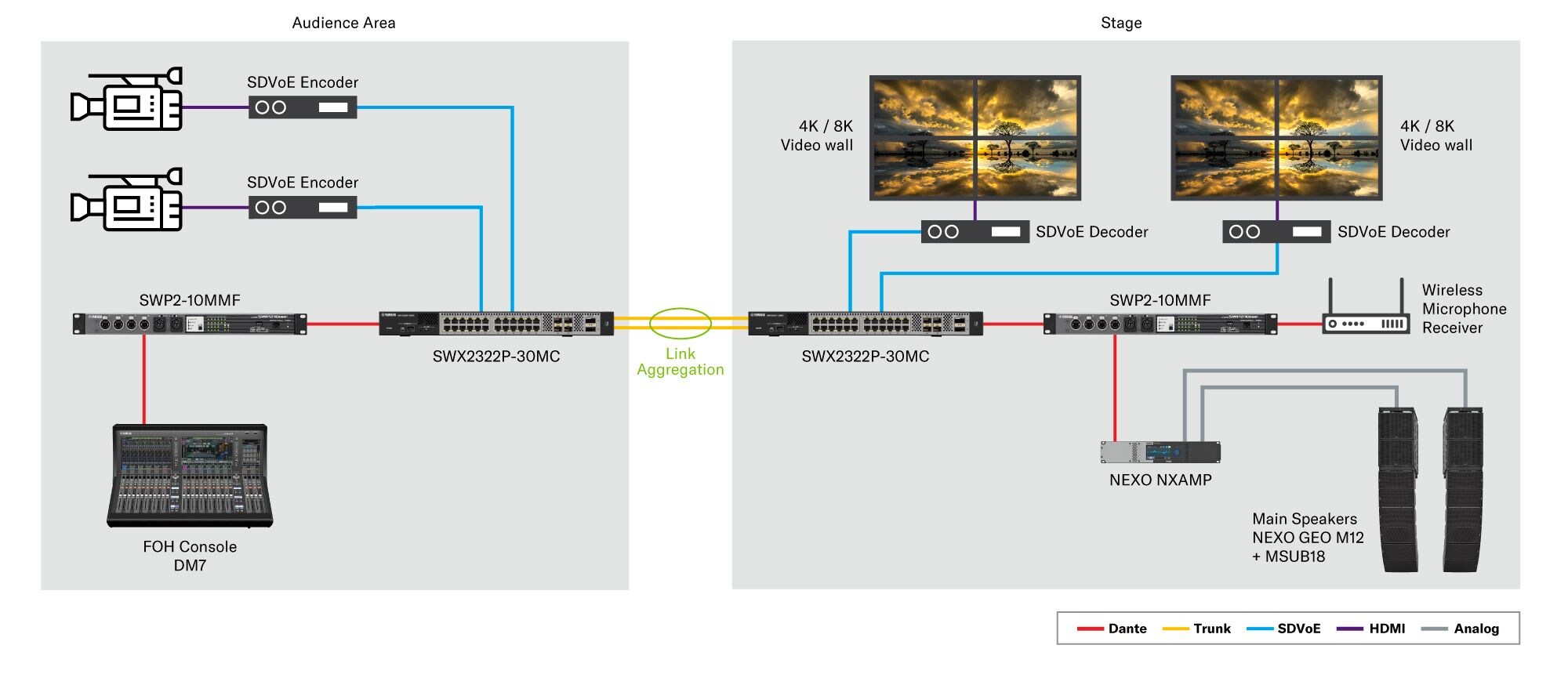

Network Architecture Optimized for ProAV Systems
As video and audio workflows shift to IP, the demand for higher bitrates and multi-channel encoder/decoder setups continues to grow—resulting in increased network traffic.
Yamaha’s network switches—SWX2322P-30MC and SWX3220-30TCs—are purpose-built to meet these challenges.
They support both single-segment transmission via L2 switching and multi-segment media routing using L3 switching, enabling scalable and efficient AV-over-IP deployments.
In live event venues, switches can be distributed between FOH (Front of House) and stage-side locations, allowing flexible signal routing and high-density encoder/decoder connections.
In corporate facilities, these switches support AV systems spanning multiple floors or departments, delivering stable, high-resolution, low-latency transmission across the entire network.
100GbE Stacking Support: Unified Management of Dual Units
By connecting two identical switch models via 100GbE ports in a LAG (Link Aggregation Group) configuration, you can build a high-capacity inter-switch link of up to 200GbE.
Even in large-scale deployments requiring extensive port counts, two switches can be stacked and managed as a single unit—doubling the available ports while improving operational efficiency.
SWX3220-30TCs supports IEEE 1588 PTPv2 Boundary Clock (BC), enabling the construction of highly accurate media synchronization environments.
This makes them ideal for IP-based video and audio transmission in broadcast applications.
High-Reliability Network Switch for Large-Scale Facilities
"SWX3220-30TCs" is designed for environments like amusement parks, our 10G/100G core switch ensures stable, low-latency transmission of audio and video signals.
Fiber connections (SFP, etc.) provide noise resistance and long-distance coverage—ideal for seamless AV performance across wide areas.

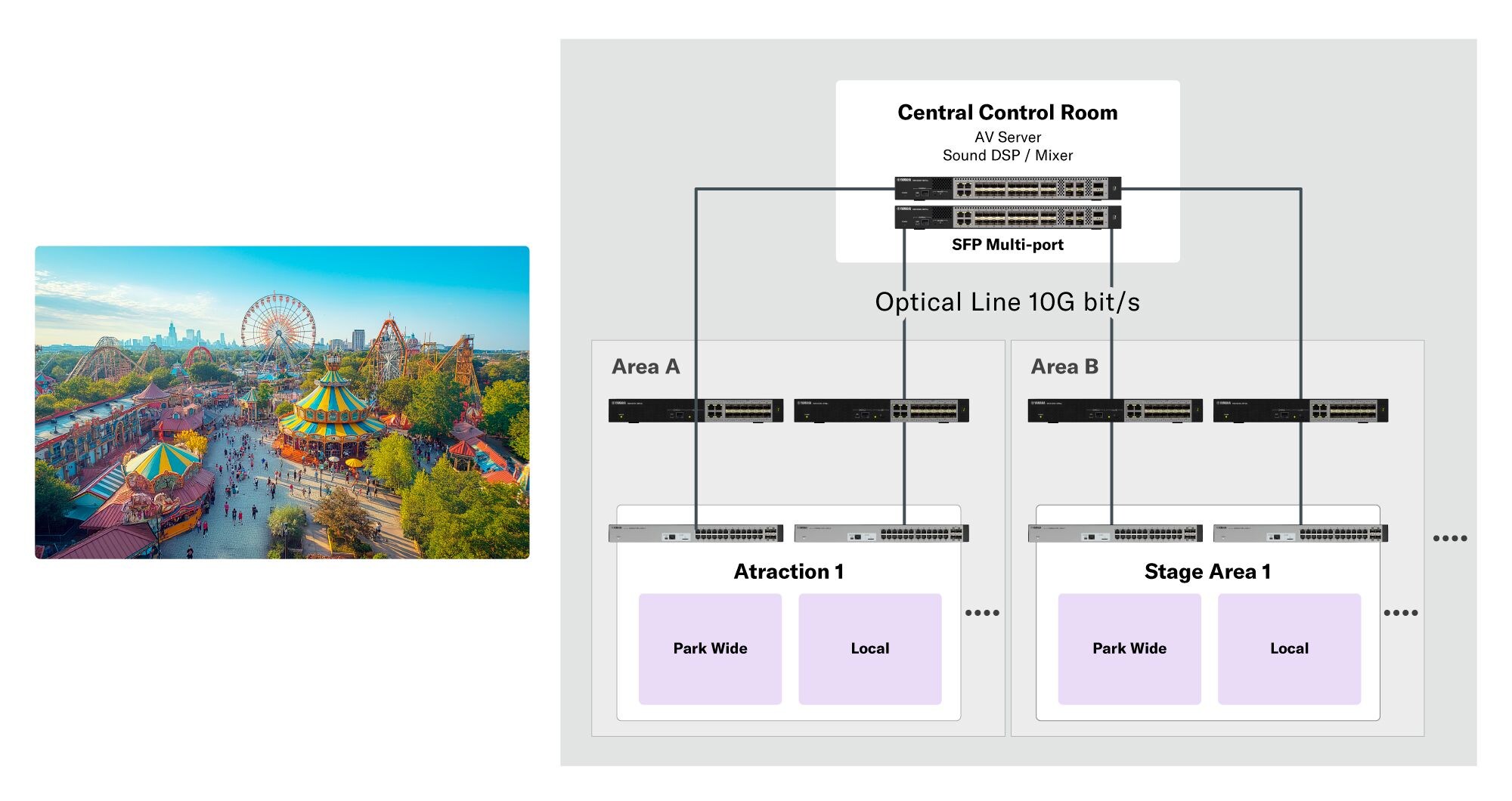

System Overview for the Amusement Market
