| General Specifications |
| General |
Construction |
Set-in |
| Scale Length |
24-3/4” (628.6mm) |
| Body |
Body Materials |
Top: Maple / Back: Chambered Mahogany |
| Body Finish |
Gloss Polyurethane |
| Neck |
Neck Materials |
3-Piece Mahogany, Carbon Reinforcement |
| Neck Finish |
Satin Polyurethane |
| Fingerboard Materials |
Rosewood |
| Fingerboard Radius |
12" (304.8mm) |
| Fret wire |
Jumbo Stainless steel |
| Number of frets |
22 |
| Nut materials |
PPS |
| Neck Width @ 0 Fret / 12th Fret |
41.9 / 52.0 mm |
| Thickness @1st Fret / 12th Fret |
21.0 / 23.9 mm |
| Electronics |
Neck Pickup |
VP5n Custom: P-90 Type Single Coil/Alnico III |
| Middle Pickup |
- |
| Bridge Pickup |
VP5b Custom: P-90 Type Single Coil/Alnico III |

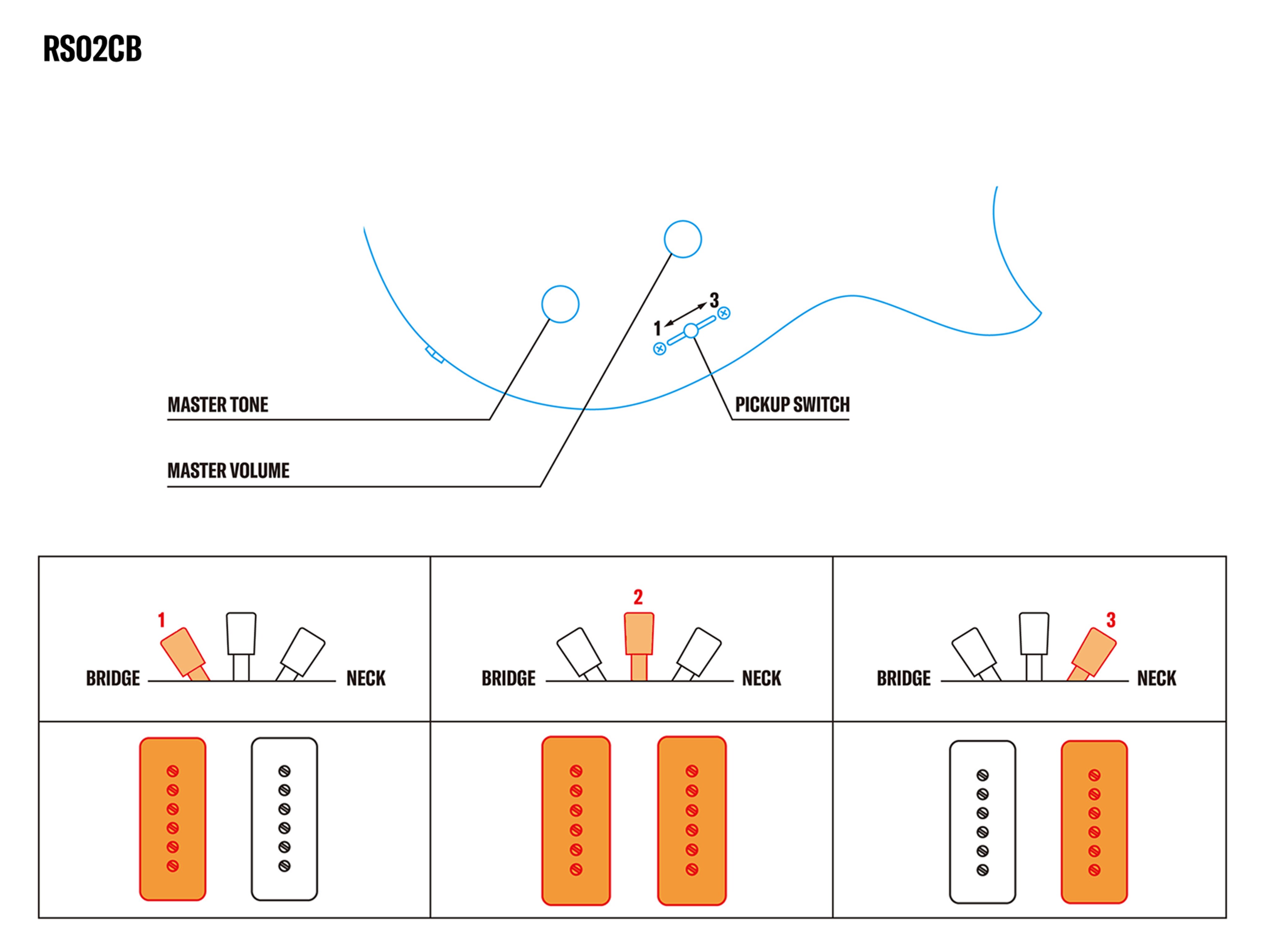

| Controls |
Master Volume, Master Tone |
| Pickup Switch |
3-Position Lever Switch |
| Hardware |
Bridge |
TonePros AVT2 wrap around bridge |
| Tremolo Arm |
- |
| String spacing |
10.5mm |
| Tailpiece |
- |
| Tuning Machines |
Die-Cast |
| Pickguard |
ABS 1ply / Parchment |
| Others |
String gauge |
Elixir Nanoweb Light / 0.010-0.046 |
| Case |
Gig Bag |
| Special Features |
- |
