URX22 Audio Interface
Minimal Effort. Maximum Performance.
Perfect for streamers, podcasters, gamers, and vocalist/ musicians in particular, the URX22 is a compact, portable powerhouse punching well above its weight class in sound quality and system capability. When you demand professional-level audio but without the often frustrating and complicated setup and operation that usually comes with it, the URX22 is a minimalist’s dream, delivering professional-level results, yet with an effortless setup and workflow that won’t hinder your creativity.
Features
Capture the Moment
Capture the Moment
Every note, every breath, every beat — captured with stunning precision and faithful clarity.
Born from Yamaha’s philosophy of True Sound, the URX mic preamps capture the raw power, delicate nuances, and pure beauty of your performance with exceptional accuracy. 78 dB gain range with ultra-low distortion, and a 125 dB dynamic range at Main output—all designed to capture every detail of your performance exactly as it is.
Pristine, True Sound Reproduction
The pristine 192 kHz / 32-bit resolution, combined with high-end AD/DA converters, delivers pure input and output sound that faithfully reproduces the vividness and life of every moment in your recordings, productions, and edits—without compromise.

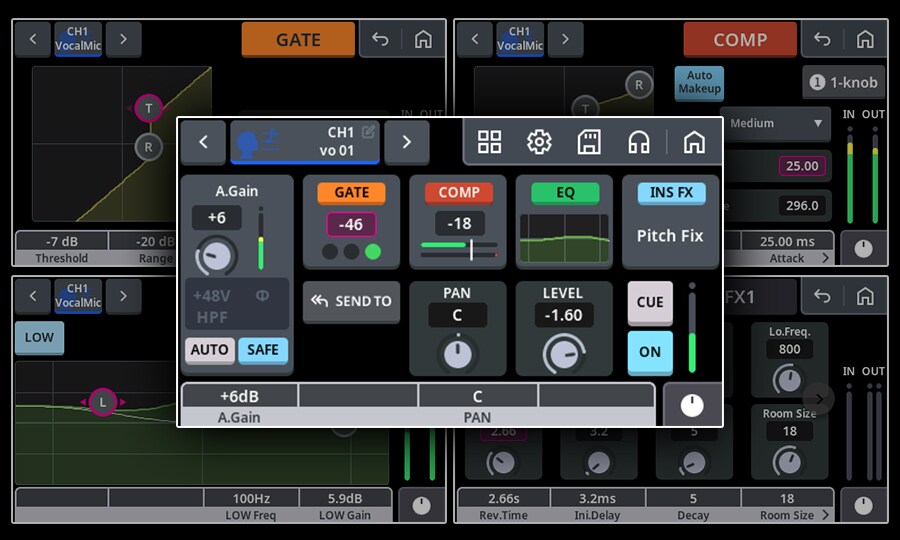

Creative Tools for Your Signature Sound
The URX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer (Pitch Fix), letting you shape your sound exactly as you've envisioned. And with clear, comfortable monitoring on stage, in the studio, or during a stream, every moment you capture will resonate with your distinctive sound.
Expand. Connect. Create.
Expand. Connect. Create.
The URX series gives you the freedom to expand your creativity without limits. Whether you’re recording, performing live, podcasting, or producing, your URX adapts to your unique style and workflow, taking your sound and performances into exciting new territory.

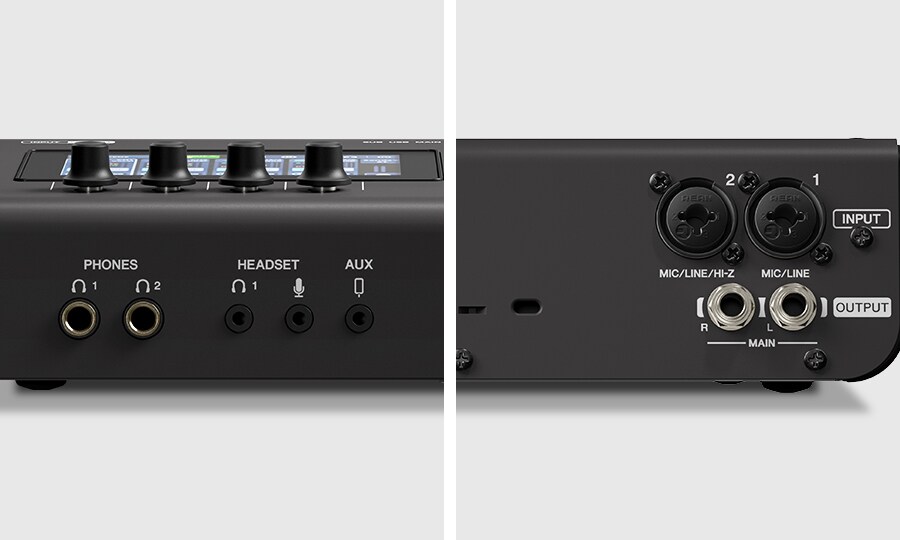

Connect and Collaborate
With two combo inputs offering 78 dB of gain range and one stereo mini AUX input, you can connect any microphone or instrument, while two headphone ports allow you to create with collaborators and monitor with precision in the studio or on stage.

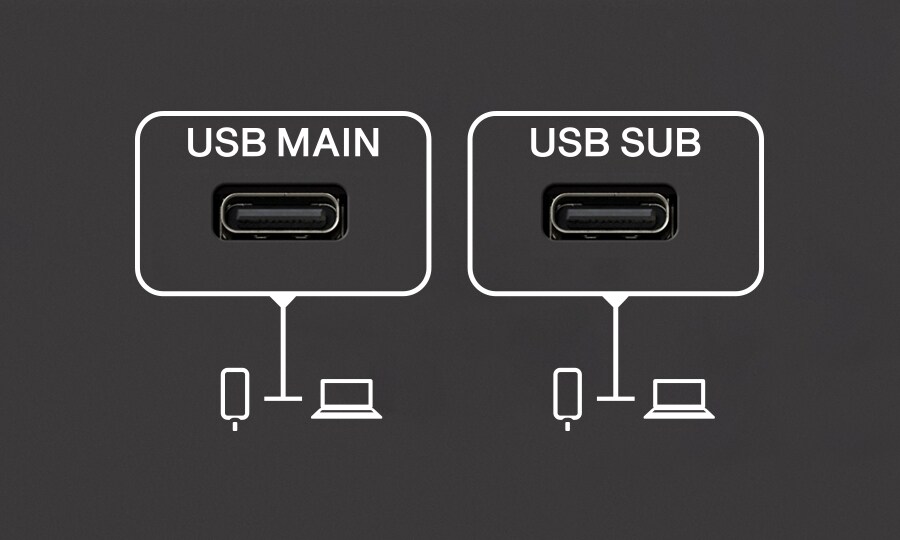

Flexible Integration
By making full use of the flexible routing functions and dual MAIN/SUB USB ports, you can integrate a wide range of audio sources and devices into a setup that adapts to your creative process and production workflow.
- USB MAIN: 16-track recording / 16-track playback
- USB SUB: 2-track recording / 2-track playback
Fast. Intuitive. In Flow.
Fast. Intuitive. In Flow.
The URX is made for creators who want powerful control without the complexity. Its intuitive panel GUI combines pro-quality effects, flexible routing, and a full set of assistive features, while the carefully configured physical controls and responsive touch operation enable smooth and precise, tactile control.

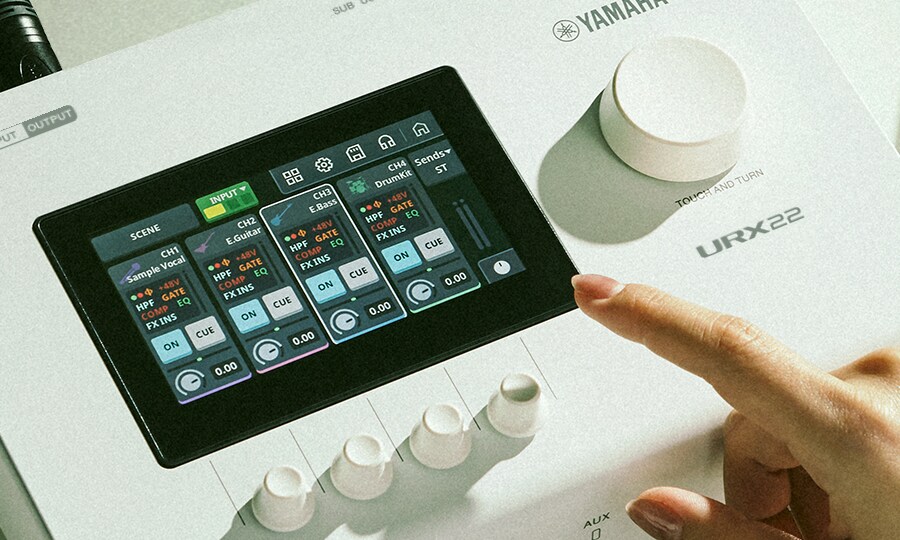

Intuitive Control at Your Fingertips
With a feature-packed GUI, an intuitive touch LCD, four customizable knobs, and the TOUCH AND TURN knob, you can experience fast, precise, and effortless control—right at your fingertips.

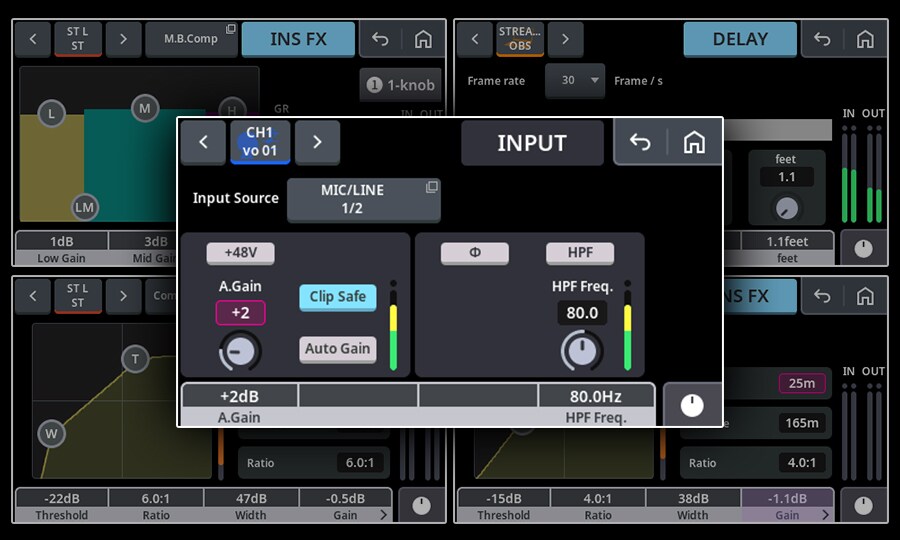

Assistive Tools for Pro-Level Sound
Smart Gain optimizes input volumes, Clip Safe prevents sudden distortion, and Total FX gives you tools like the Ducker—automatically prioritizing important sounds—and a Multi-Band Compressor to conveniently enhance your overall audio quality, and even a Delay for lip-sync adjustment.
With these features, your URX keeps your workflow smooth and your sound consistently professional in any situation.

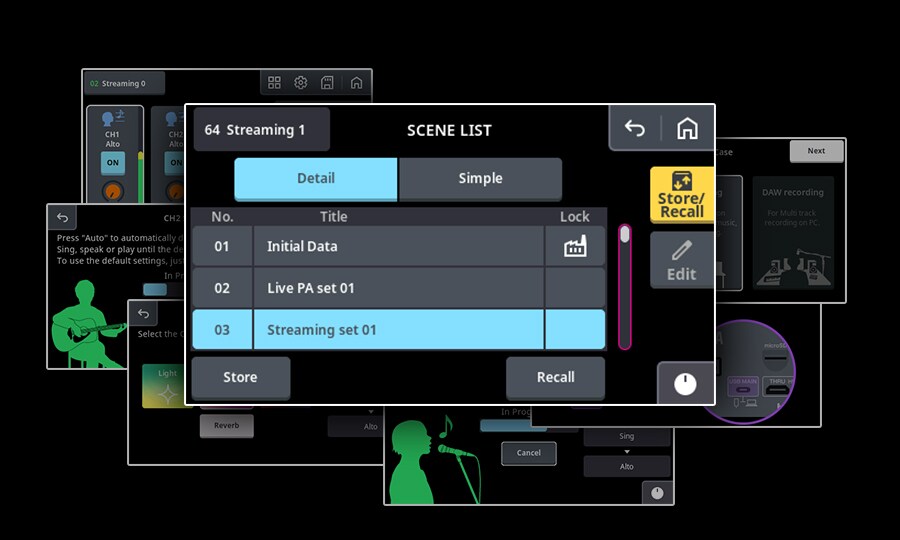

Quick Setup Changes with Scene Recall
With a Scene Recall function similar to those on a professional digital mixing console, you can switch between different setups or applications with the touch of a button. You can even pair it with Simple Mode for extra support, allowing you to stay focused on what matters most: your creativity.
Cohesive Creativity
Cohesive Creativity
With an ever-expanding ecosystem of production software and a wide range of compatible controllers, your URX becomes an even more powerful partner in your creative journey. Far more than just an interface, when your URX combines with these tools it opens up a new world of freedom and possibilities for your creativity.
Comprehensive Creative Software and Hardware
A complete suite of Steinberg music production software, together with the free software mixer MixKey, provides support for everyone from beginners just starting out to experienced engineers and creators looking to branch out into new production styles or content creation.
With Yamaha’s lineup of speakers, microphones, headphones, and more, you can build a system that grows and evolves right alongside your developing skills and creative workflow.
Seamless Controller Integration for a Custom Workflow
Seamless integration with Elgato’s Stream Deck and OBS Studio enhances the smoothness and reliability of all controls. In addition, future support for URX remote operation through Stream Deck—along with ongoing development and further feature expansion—is planned to continuously extend these capabilities. This will enable you to build a workflow that is truly your own and focus entirely on music production, streaming, video content creation, and performance.
Systems

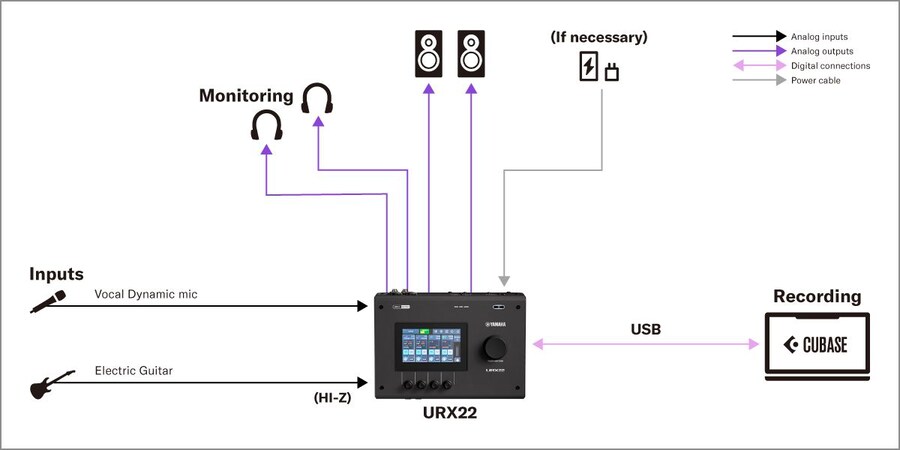

1. PC Recording Setup for Vocalist
This setup is designed for vocal recording using the URX22.
A dynamic vocal microphone and an electric guitar (Hi-Z input) are connected to the URX22, with monitoring provided through headphones or monitor speakers.
The audio is sent via USB to a computer, allowing high-quality recording in Cubase with minimal setup.
Click the image to enlarge it.

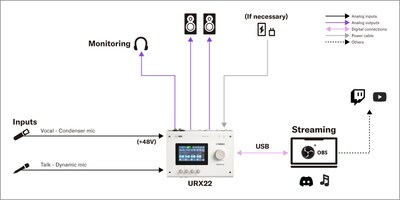

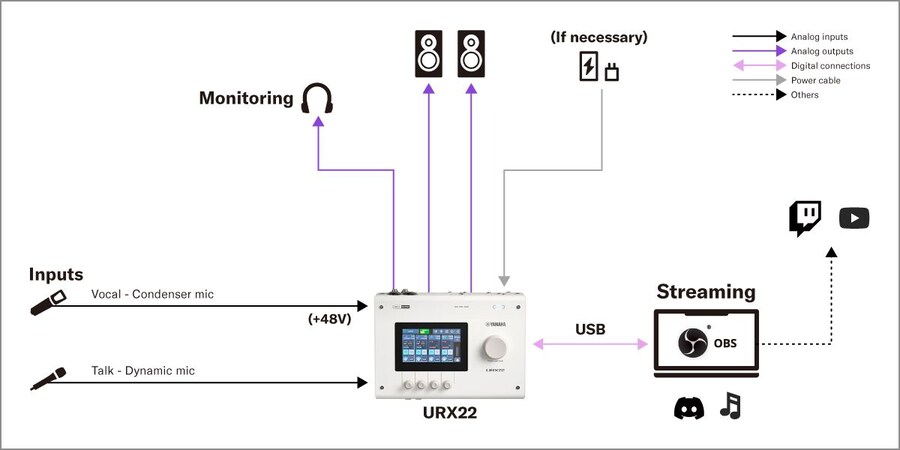

2. Live Streaming Setup for Singing & Talk
This setup supports singing and talk livestreams with the URX22.
A condenser microphone for vocals (with +48V phantom power) and a dynamic talk microphone are routed into the URX22.
Monitoring is provided through headphones or monitor speakers, while the mixed audio is sent via USB to streaming software such as OBS.
This compact system enables clear, engaging livestreaming for music and communication.
Click the image to enlarge it.
Videos
URX Series Tutorial Video #1 Standard Mode
URX Series Tutorial Video #2 Simple Mode
Product Information

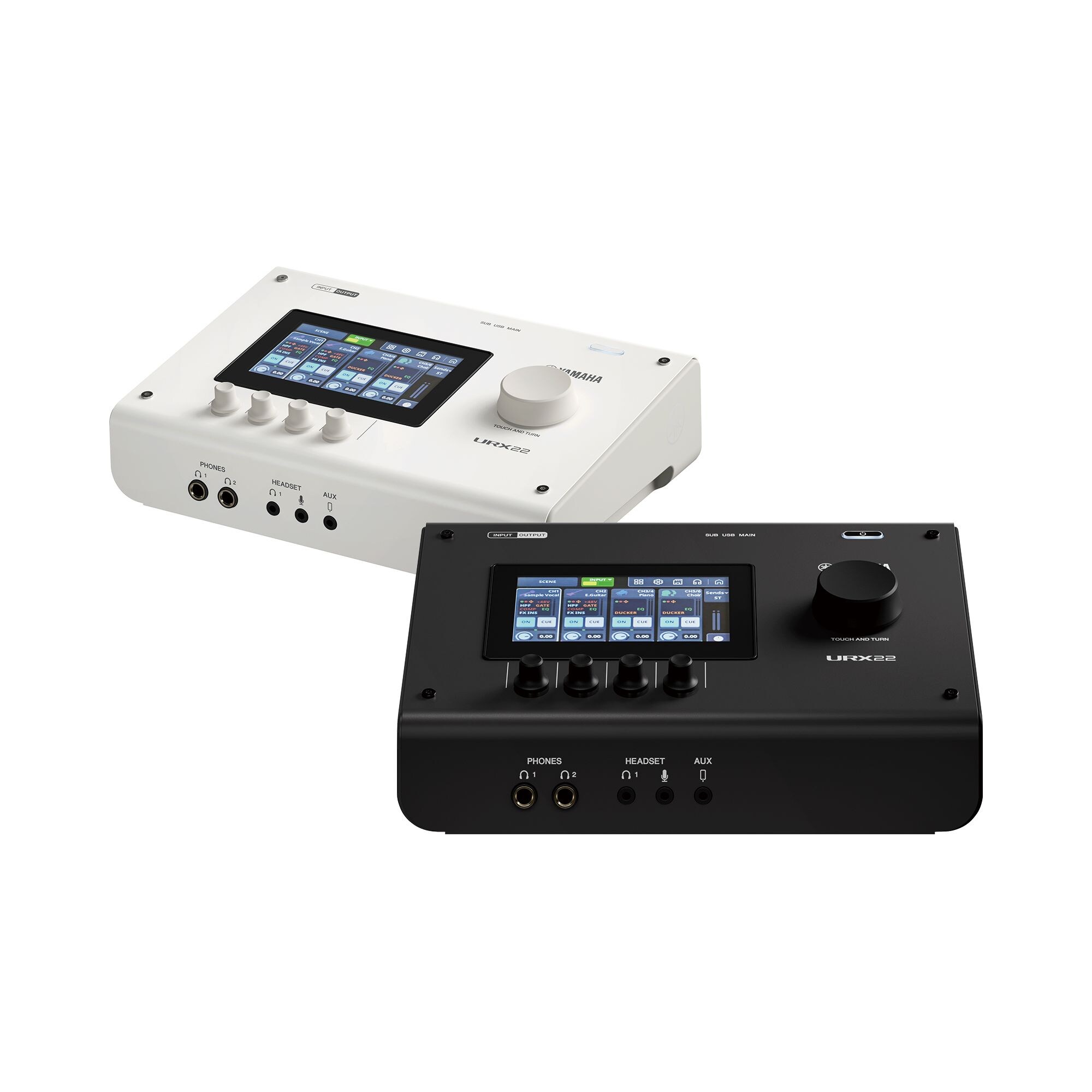

URX22 Audio Interface
4-in/2-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow.
- USB Type-C audio interface with 32-bit / 192 kHz support, Multi-Stream Audio Driver, dual USB (MAIN/SUB)
- 125 dB dynamic range (MAIN output - Balanced)
- 2 URX mic preamps with 78 dB gain range and +48 V phantom power
- 2 Mic/Line (1 Combo/3.5 mm headset mic, 1 Combo with Hi-Z), 1 AUX input (3.5 mm phone)
- 2 TRS line outputs, 2 headphones (1 stereo phone/3.5 mm headset, 1 stereo phone)
- Input mixing channels: 2 mono + 4 stereo + 2 FX
- Busses: 2 MIX (stereo) + 1 STEREO
- A 4.3-inch touchscreen with five control knobs
- Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
- Built-in DSP processor for professional sound and latency-free monitoring
- Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, USB-C to USB-C Cable (USB 2.0, 1.5m)
