General specifications |
LAN port |
Standard |
IEEE802.3 (10BASE-T/100BASE-TX/1000BASE-T) |
IEEE802.3 (10BASE-T/100BASE-TX/1000BASE-T) |
Number of ports |
10 ports |
5 ports |
Ports available for PoE power supply |
9 ports (port 1–9) |
4 ports (port 1–4) |
PoE standards |
IEEE 802.3at |
IEEE 802.3at |
Power supply system |
Alternative A |
Alternative A |
Maximum power supply |
Per port |
30W (Varies depending on the power consumption class of each connected device.) |
30W (Varies depending on the power consumption class of each connected device.) |
All ports |
70W |
70W |
Compatible PoE powered devices |
PoE powered devices that comply IEEE 802.3af standards or IEEE 802.3at standards |
PoE powered devices that comply IEEE 802.3af standards or IEEE 802.3at standards |

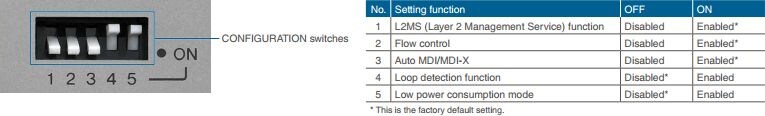

Switches |
CONFIGURATION switches for modifying the settings (L2MS switch, Flow control switch, Auto MIDI/MIDI-X switch, Loop detection switch, energy save mode switch) |
CONFIGURATION switches for modifying the settings (L2MS switch, Flow control switch, Auto MIDI/MIDI-X switch, Loop detection switch, energy save mode switch) |

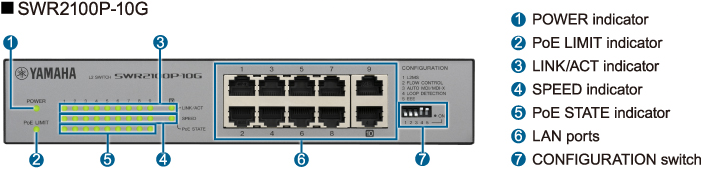

Indicators |
POWER, PoE LIMIT, LINK/ACT, SPEED, PoE STATE (x31) |
POWER, PoE LIMIT, LINK/ACT, SPEED, PoE STATE (x16) |
Operating environment |
Ambient temperature: 0 to 40 °C, Ambient humidity: 15 to 80% (no condensation) |
Ambient temperature: 0 to 40 °C, Ambient humidity: 15 to 80% (no condensation) |
Storage environment |
Ambient temperature: -20 to 50 °C, Ambient humidity: 10 to 90% (no condensation) |
Ambient temperature: -20 to 50 °C, Ambient humidity: 10 to 90% (no condensation) |
Power supply voltage, frequency |
AC100 V to 240 V, 50 Hz/60 Hz |
AC100 V to 240 V, 50 Hz/60 Hz |
Power consumption |
90 W |
86 W |
Dimensions |
W |
220 mm |
220 mm |
H |
40.5 mm |
40.5 mm |
D |
250 mm |
250 mm |
Weight |
1.8 kg |
1.6 kg |
Accessories |
Owner’s Manual; power cord; power cord clamp; feet Controls and |
Owner’s Manual; power cord; power cord clamp; feet Controls and |
