Speaker General Bracket

Store Finder

General Bracket

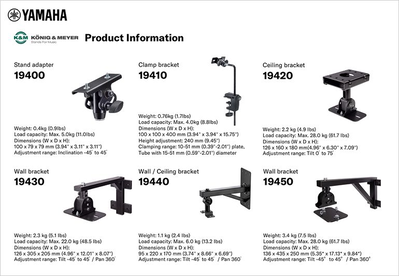

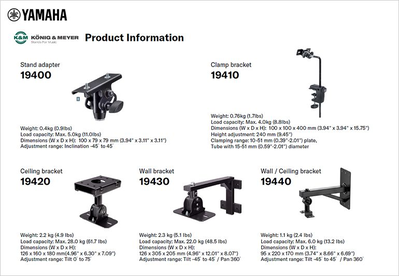

Founded in 1949, König & Meyer is a leading global manufacturer of stands for microphones, speakers and musical instruments, providing a range of high quality, durable bracket and stand hardware which is fully compatible with Yamaha equipment.

Download Reference Table

For DZR/CZR Series

UB-DZR15V / UB-DZR15VW U-Brackets

UB-DZR15V / UB-DZR15VW U-Brackets

U-brackets enabling simple and easy rigging in vertical configurations. (for DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W)

Net weight: 5.9kg; 13.0lbs
Applicable for: DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W
Black or white finish

Product Registration

UB-DZR15H / UB-DZR15HW U-Brackets

UB-DZR15H / UB-DZR15HW U-Brackets

U-brackets enabling simple and easy rigging in horizontal configurations. (for DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W)

Net weight: 6.2kg; 13.7lbs
Applicable for: DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W
Black or white finish

Product Registration

UB-DZR12V / UB-DZR12VW U-Brackets

UB-DZR12V / UB-DZR12VW U-Brackets

U-brackets enabling simple and easy rigging in vertical configurations. (for DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W)

Net weight: 4.7kg; 10.4lbs
Applicable for: DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W
Black or white finish

Product Registration

UB-DZR12H / UB-DZR12HW U-Brackets

UB-DZR12H / UB-DZR12HW U-Brackets

U-brackets enabling simple and easy rigging in horizontal configurations. (for DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W)

Net weight: 4.7kg; 10.4lbs
Applicable for: DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W
Black or white finish

Product Registration

UB-DZR10V / UB-DZR10VW U-Brackets

UB-DZR10V / UB-DZR10VW U-Brackets

U-brackets enabling simple and easy rigging in vertical configurations. (for DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W)

Net weight: 3.6kg; 7.9lbs
Applicable for: DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W
Black or white finish

Product Registration

UB-DZR10H / UB-DZR10HW U-Brackets

UB-DZR10H / UB-DZR10HW U-Brackets

U-brackets enabling simple and easy rigging in horizontal configurations. (for DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W)

Net weight: 3.8kg; 8.4lbs
Applicable for: DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W
Black or white finish

Product Registration

For DXR mkII, DXR Series

UB-DXR15 U-Brackets

U-brackets allow simple and easy rigging in both horizontal and vertical configurations. (for DXR15mkII, DXR15)

Product Registration

UB-DXR12 U-Brackets

U-brackets allow simple and easy rigging in both horizontal and vertical configurations. (for DXR12mkII, DXR12)

Product Registration

UB-DXR10 U-Brackets

U-brackets allow simple and easy rigging in both horizontal and vertical configurations. (for DXR10mkII, DXR10)

Product Registration

UB-DXR8 U-Brackets

U-brackets allow simple and easy rigging in both horizontal and vertical configurations. (for DXR8mkII, DXR8, VXS10S/W, VXS10ST/W)

Product Registration

For Installation Series

HAF3-2112 Horizontal Array Frame for 3 Speakers

Available for: IF2112(M)/95/64/99×3
Net weight: 9kg

HAF3-2115 Horizontal Array Frame for 3 Speakers

Available for: IF2115(M)/95/64/99×3
Net weight: 10kg

HAF3-3115 Horizontal Array Frame for 3 Speakers

Available for: IF3115/95/64×3, IH2000/95/64×3, IH2000/95/64×2 and IL1115×1, IH2000/95/64×1 and IL1115×2, IL1115×3
Net weight: 14kg

HAF3-S18 Horizontal Array Frame for 3 Speakers

Available for: IF3115/95/64×2 and IS1218×1, IH2000/95/64×2 and IS1118×1
Net weight: 29kg

HAF2-2112 Horizontal Array Frame for 2 Speakers

Available for: IF2112(M)/95/64/99×2
Net weight: 4kg

HAF2-2115 Horizontal Array Frame for 2 Speakers

Available for: IF2115(M)/95/64/99×2
Net weight: 5kg

HAF2-3115 Horizontal Array Frame for 2 Speakers

Available for: IF3115/95/64×1, IH2000/95/64×1 and IL1115×1
Net weight: 6kg

VAF2-2112 Vertical Array Frame for 2 Speakers

Available for: IF2112(M)/95/64/99×2
Net weight: 4kg

VAF2-2115 Vertical Array Frame for 2 Speakers

Available for: IF2115(M)/95/64/99×2
Net weight: 5kg

VAF2-3115 Vertical Array Frame for 2 Speakers

Available for: IF3115/95/64×2, IH2000/95/64×2
Net weight: 6kg

UB2112 U-Brackets

Available for: IF2112(M)/95/64/99/AS
Net weight: 4kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

UB2115 U-Brackets

Available for: IF2115(M)/95/64/99/AS
Net weight: 9kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

UB2000 U-Brackets

Available for: IH2000/95/64, IL1115
Net weight: 9kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

UB2208 U-Brackets

Available for: IF2208
Net weight: 3kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

UB2108 U-Brackets

Available for: IF2108
Net weight: 2kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

UB2205 U-Brackets

Available for: IF2205
Net weight: 1kg
* The bracket for the UB series is designed to be used horizontally. It cannot be used vertically.

The colours and finishes shown may vary from those on the actual products.
