Yamaha’s ADECIA Solution with Q-SYS
What is Q-SYS
Since its inception in 2009, it has been architected to deliver seamless, unified, and scalable human experiences. With established solutions across Corporate, Education, Hospitality, Venues & Events, Cinema, Government, Healthcare, and Transportation, Q-SYS raises the bar for both live and virtual experiences by uniting hardware and software partners, developers, and creators.
Headquartered in Costa Mesa, CA, Q-SYS has regional offices in Sinsheim (Germany), Boulder (Colorado), Bengaluru (India) and Hong Kong, along with training, market development, sales/support offices and distribution facilities located throughout North and South America, Europe, Asia and the Middle East.
Yamaha Joins Q-SYS Technology Partner Program
Yamaha is committed to providing ADECIA customers with even greater flexibility and connectivity. As part of the program, Yamaha has worked closely with Q-SYS, who has fully vetted and endorsed Yamaha’s ADECIA RM-CG Ceiling Array Microphone plugin integration with a Q-SYS Certified badge (developed with Q-SYS and supported by Yamaha and Q-SYS).
This new plugin leverages ADECIA RM-CG's multi-beam tracking commands for talker-based camera switching enabling meeting equity in various environments for companies, universities and government offices. The plugin allows users to configure and connect via IP address, view device information and status, control the devices settings such as tracking speed, automix settings per channel, mic gain, LED mode, and more.
Yamaha has now developed a new plug-in for RM-W Wireless microphones. It enables users to view the connection status, control mute functions, and check battery levels directly within Q-SYS Designer, making operation more efficient and intuitive for system integrators and users. In addition, DSP functions such as echo canceller, noise reduction, and microphone gain can be configured, and group mute control of multiple microphones is also supported.
ADECIA RM-CG Ceiling Array Microphone is selectable with Q-SYS “ACPR”.
In addition, ADECIA RM-CG Ceiling Array Microphone was selectable within Q-SYS Automatic Camera Preset Recall (ACPR) plugin where customers can use the ADECIA RM-CG as part of Q-SYS intelligent audio capabilities, without the need for additional programming.
System Configuration
1. Ceiling Array Microphone
2. Dante PoE Powered Speaker System
3. Network＋Analog I/O Processor
4. Network PTZ Cameras
5. Network Video Endpoints
6. Network Video Endpoints
7. Compatible Switch
8. Room Controller
9. UC Compute

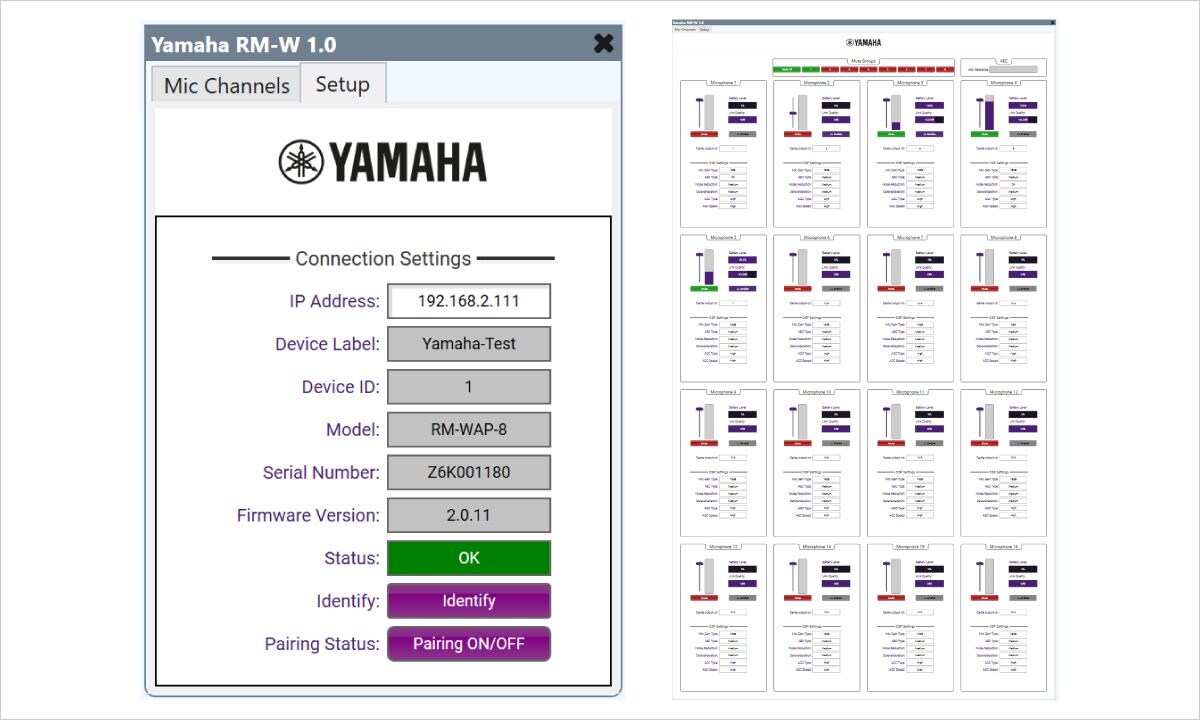

Q-SYS Plugin for controlling Yamaha RM-W wireless microphones (Firmware V2.0.11)
The RM-W plug-in allows you to view and configure the following RM-W settings within Q-SYS Designer.
・Connection via IP address
・Configure up to 16 microphone channels*
*You can select either RM-WAP16 or RM-WAP8 from the Properties menu

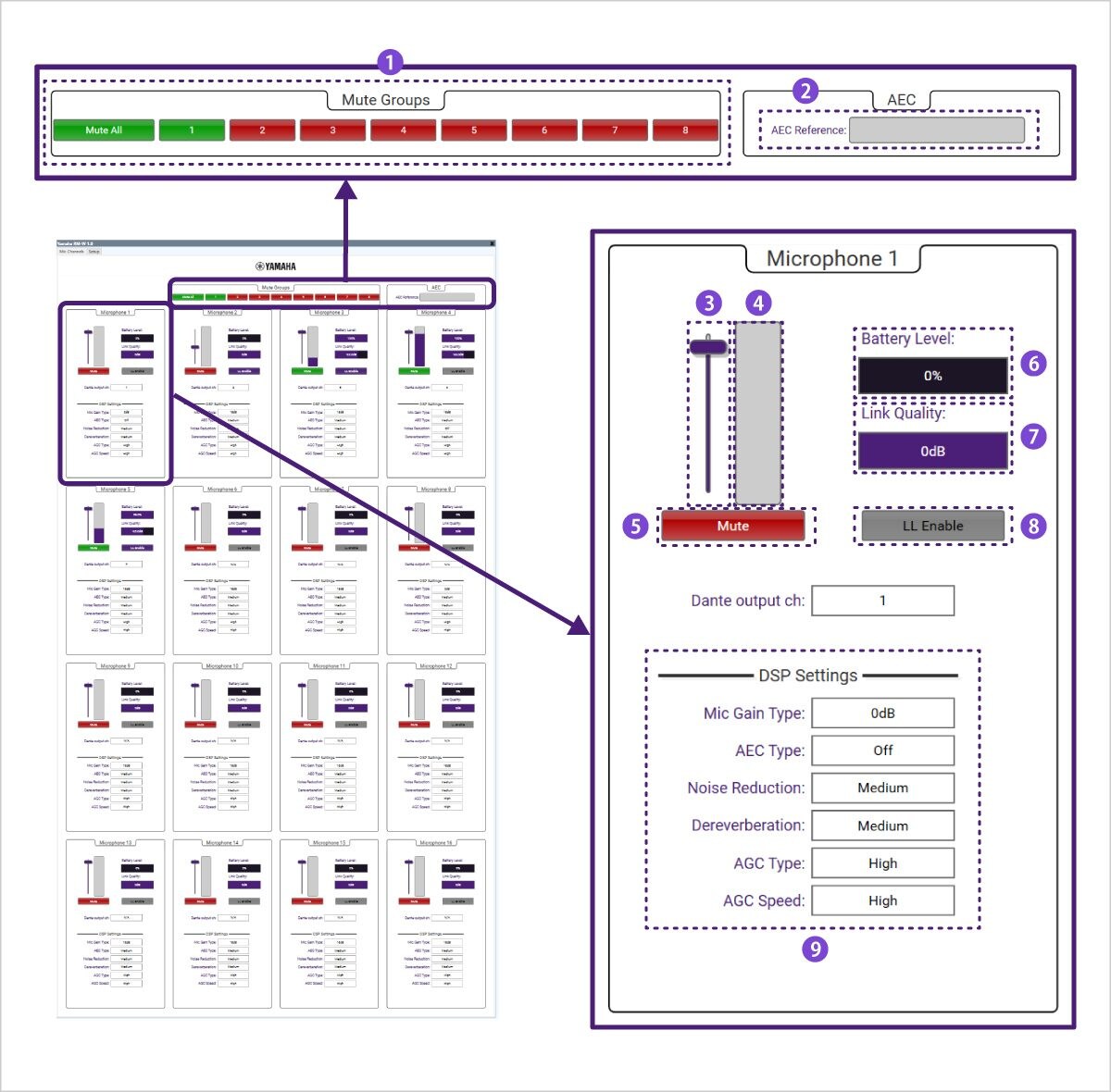

Plugin UI image in Q-SYS Designer
1. Mute Group
2. AEC Reference Level
3. Fader Level
4. Input Signal
5. Mute / Unmute
6. Battery Level
7. Link Quality
8. Low Latency Mode Enable
9. DSP Settings
- Mic Gain Type
- AEC Type
- Noise Reduction
- Derevebration
- AGC Type
- AGC Speed
